|Model NO.||FX-6B||Packaging Material Mechanical Properties||Flexible Container Sealing|
|Material Type||for Bottles Capping||Certification||Ce;ISO9001;SGS|
|Key Selling Points||High-Accuracy||Bottle Type||Pet Glass Metal Bottle|
|Capacity Speed||3000-6000bph||Machine Material||SUS 304|
|Advantage||for Caps with Insert||Machine Type||Fx-6b|
|Capping Type||Plastic Screw Cap||Cap Diameter||18-50mm|
|Suitable for||Food Chemicla Pharmacy Packing||Trademark||ZT-PACK|
|Transport Package||Wooden Packing Suitable for Exporting||Specification||2000*1300*2200mm|

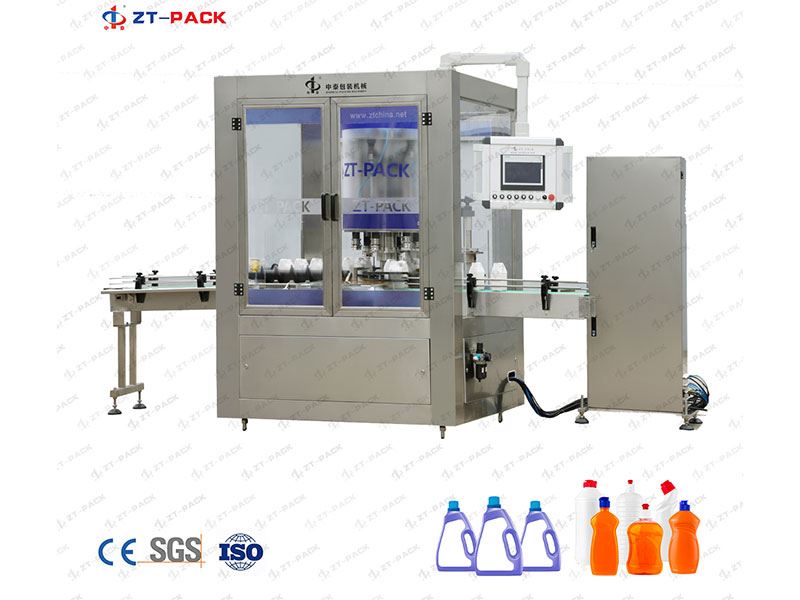

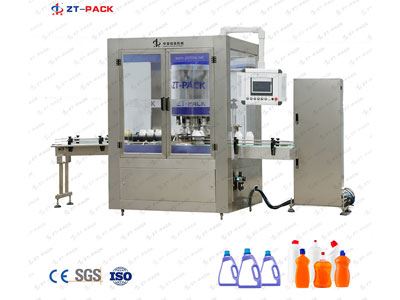

The rotary capping machine can implement positioning and placing threaded caps precisely. This bottle capping machine can prevent bottles and caps from damage during the capping process, so as to ensure high work efficiency. It also has automatic nitrogen injection and cap removal functions, and features stable operation, low noise, long service life and wide range of applications. Besides, capping speed is adjustable, this makes the rotary capper suitable for large and medium-sized packaging workshops.
|Product Name||Rotary Pick and Place Capping machine||Power supply:||AC 380Vthree phase; 50Hz|
|Suitable cap height||10mm---35mm,||Capping Heads||6|
|Suitable cap Diameter||diameter: Φ20mm---Φ80mm||Capacity speed||3000-6000BPH|
|Suitable specification of bottle||diameter Φ40mm---Φ100mm, height 80mm---280mm||Place of original||China|

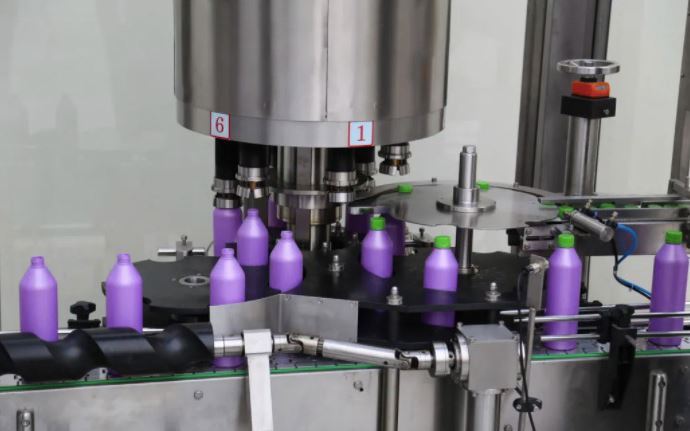

Designed with modular production, this capping machine is easy to assemble, disassemble and maintain. High speed cap tightening ensures high efficiency, safe and reliable operation.

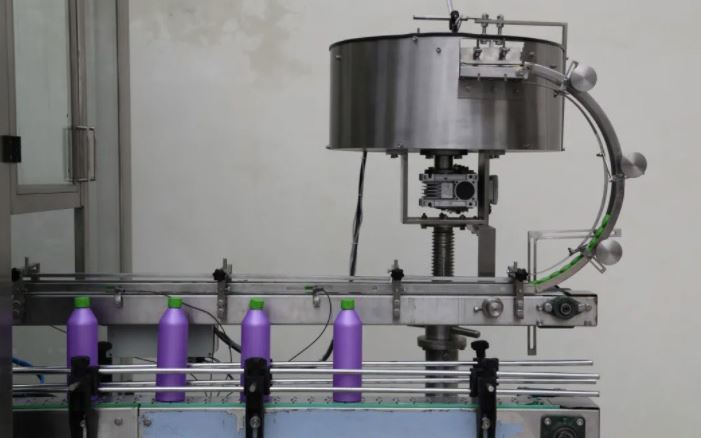

Bottle caps are conveyed into capping machine through an individual unscramble. Aluminum foil and bend cap handling device is equipped to ensure product quality.

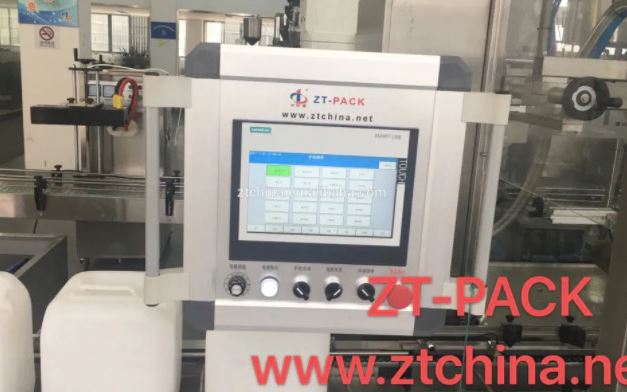

The independent control cabinet is available for simple operation, safe and reliable.
All operations can be operated by using touch screen and buttons.
