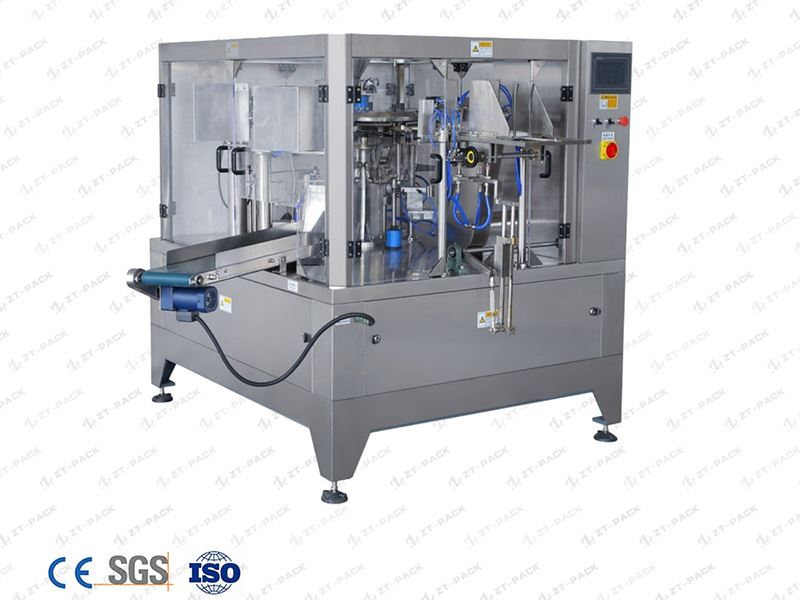

Automatic Premade Pouch Packing Machine (Up to 1kg)

Automatic Premade Pouch Packing Machine (Up to 1kg)
Inquiry

The automatic pre-made pouch packing machine is used for packaging various bag types such as zipper bag, stand-up pouch, flat bag with volume up to 1kg. This packaging equipment is ideally suitable for packaging seasonings, flour, spices, chemicals, detergents and more.

Description

This packaging equipment is integrated with automatic bag forming, packaging and weighing, which is designed for packing milk powder, coffee powder, condiments, additives and other powder materials.

Features
  • A wide range of pouches: all kinds of pre-made pouches such as flat and stand-up pouches (with/ without zipper).
  • Packing speed: 20-35bags/min
  • Easy to operate: PLC controller with color touch-screen allows for fault indication on the touch screen.
  • Easy to adjust: only about 10 minutes to change different pouches.
  • Frequency control: speed can be adjusted by frequency conversion within the range.
  • High level of automation: unmanned in weighing and packing process, machine alarms automatically when failure occurs.
  • Waterproof design: the machine surface can be washed down, ensuring easy cleaning, and
  • long service life: IP65 for motors
Packaging process

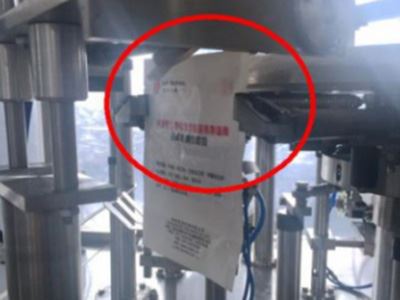

  • Station 1 Bag dispensing (bag feeding)
    Feed pouches or bags in the bag magazine, which can move up and down, and you can feed bags very easily when it moves down, and when it moves up, there is a mechanical arm with two vacuum caps will take bag up and then transmit it to the mechanical gripper on the rotary table.
  • Station 2 Coding (date printing)
    Ribbon printer, ink-jet printer for option

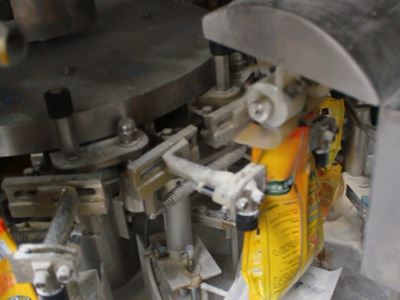

  • Station 3 Bag opening
    Using air to open the bag, and an opening detection device inserts into the opened bag to expand it and detect if it is open or not.
  • Station 4 Filling
    There is an opening detection device inserted into the open bag or pouch to expand it and detect if it is open or not. No open, no filling, no sealing
  • Station 5 Dust cleaning
    Clean the dust on the bag mouth for better heat sealing
  • Station 6 Heat sealing 1
    To seal the bag with a couple of heat sealing bar
  • Station 7 Heat sealing 2
    Second sealing for better sealing
  • Station 8 Forming and product output
    To make the sealing stable and prevent from wrinkling with cold sealing, then output the finished packages automatically.
Specifications
Model ZT8-300
Mechanical station Eight stations
Packaging bag material Composite film, laminated film(including aluminum foil film), PPPE, etc.
Bag type Flat bag, stand-up pouch, zipper bag
Packaging bag size W:120mm-320mm, L:140mm-480mm
Packaging speed 10-50 packets /min
Mechanical weight 1000kg
Error ≤±1%
Power supply 380V, three-phase, 50Hz
Weight 1200kg
Total power 2.5kW
Air supply 0.6m3/min (provided by the user)
