Carton Packaging Line

Carton Packaging Line

The carton packaging line opens, packages and seals cartons full of regular or flat glass and plastic bottles. This carton packaging machine is used to package food, beverages, medicine, cosmetics, fertilizers, and chemicals.

1. Compact combined opening, packing and sealing machine.

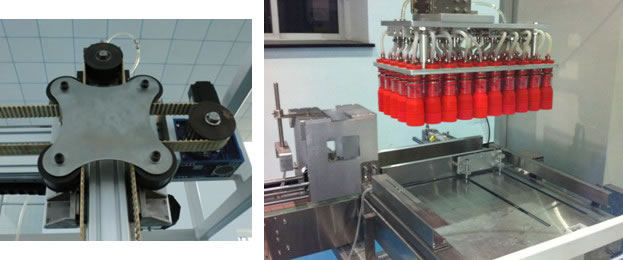

2. Double servo drive and cross move structure does automatic bottle selection and packing.

3. Inflatable bottle grab structure adjustable for different bottles.

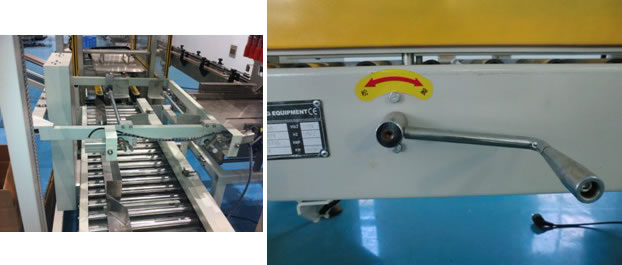

4. Easily adjustable for height and other settings.

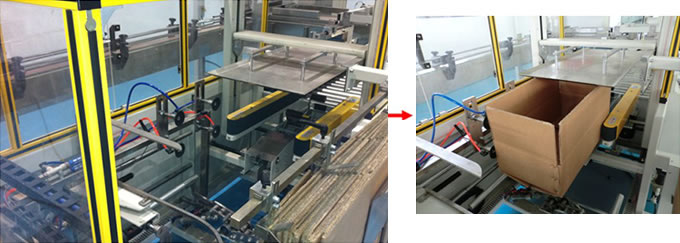

5. Efficient opening and carton conveying structures.

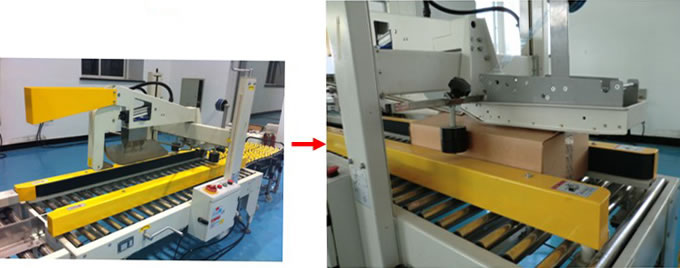

6. Effective and reliable sealing.

7. Optional DB-02 automatic clipper is available.

Main performance parameters:
Overall size(L*W*H) 4500*800*2050mm
Carton size L200-500*W1500-400*H100-450mm
Speed 4-16 carton/min (according to the carton size)
Total installed capacity 3.5kW
Min. power AC 3-380V/50HZ+G+E
Optimal working temperature 24VDC
Auxiliary power supply 0.4-0.6Mpz
Pressure of compressed air 1500L/min
Weight 1000kg
