Suitable for Filling: pesticide / paraquat / fertilizer/ EC / Sl / chemicals / agrochemical products, etc.
Filling Range: 50ml-5000ml

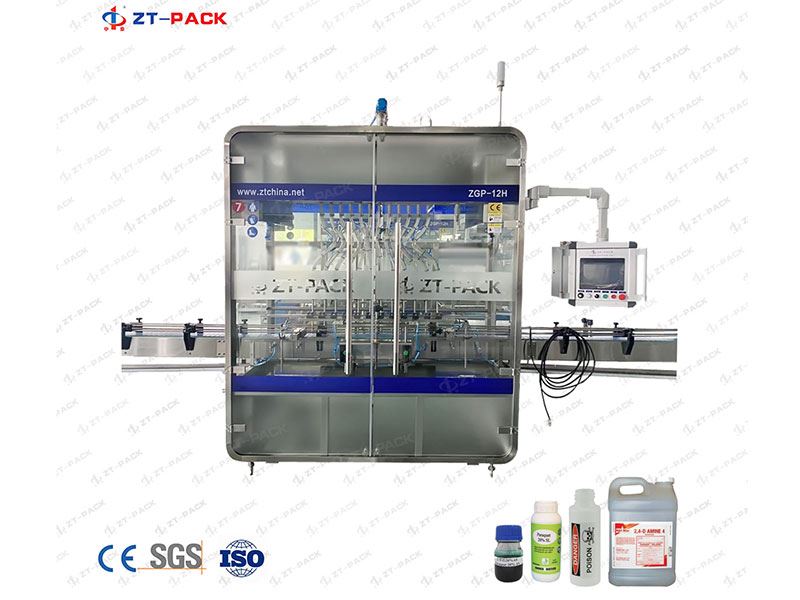

Time gravity filling machine is the most economical type of time filling machine for a limited range of applications. This time filling machine is best suited for liquids with very thin viscosities that do not change with ambient temperature or with batch variation.

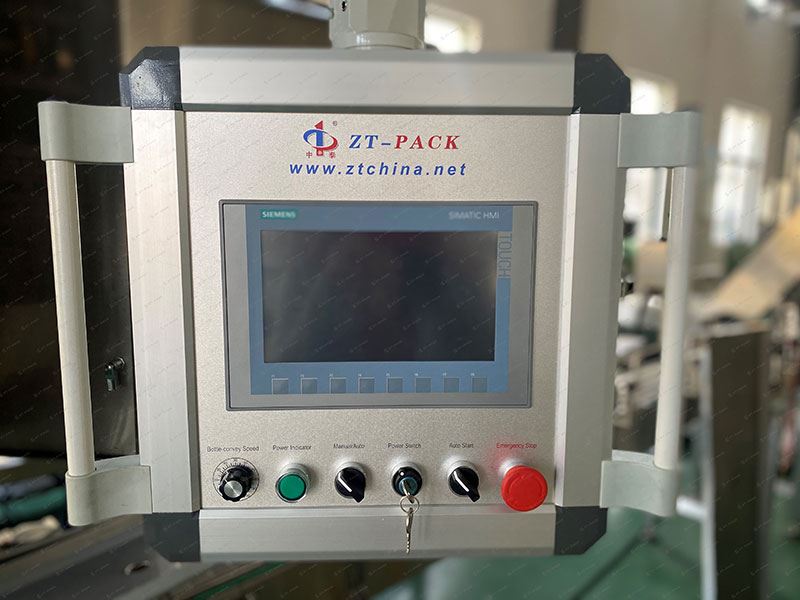

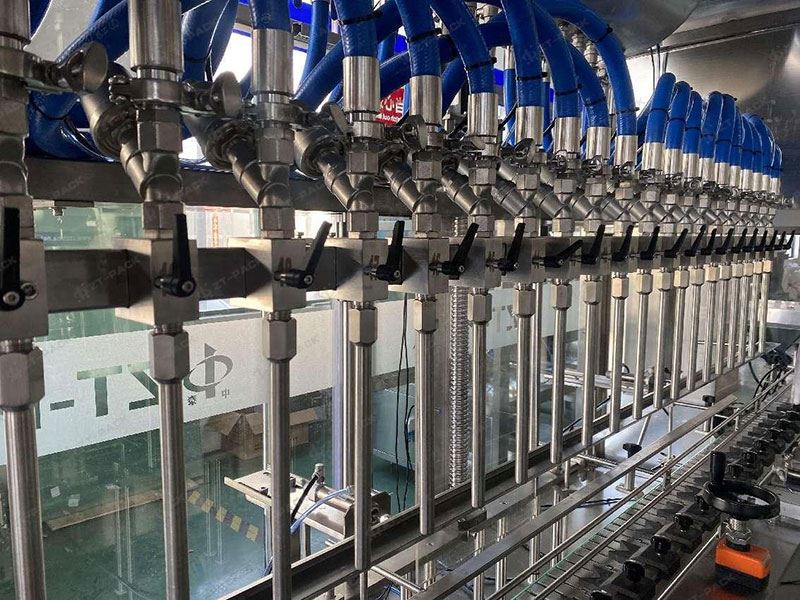

Automatic gravity filling machine working by time control from program and liquid flow from tank to nozzles freely. Machine controlled by PLC and HMI,each nozzle can adjust liquid volume separately to make more accuracy. Machine tank with level sensor to check how much liquid inside, when liquid not enough machine will feed automatically, when liquid enough in tank machine will stop feeding.
|Dimension||2000×710×2200mm (L×W×H)||2200×710×2200mm (L×W×H)||2300×710×2200mm (L×W×H)|
|Capacity（500mL）||1500B/H||2000 B/H||2500 B/H||3000 B/H||4000 B/H|
|Suitable bottle||Diameter：Φ40mm——Φ100mm Height：80mm——280mm|
|Filling accurate|| ≤100ml：+ -1.5ml |
|Neck diameter||≤Φ10mm ( can be designed accordingly)|
|Filling range||50ml——5000ml （from ZT-PACK）|
|Filling System||Gravity Time Control|
|Power supply||220V, 50Hz / 60Hz|
