Net Weight Filling Machine (5L-30L)

Net Weight Filling Machine (5L-30L)
Net Weight Filling Machine (5L-30L) Net Weight Filling Machine (5L-30L) Net Weight Filling Machine (5L-30L) Net Weight Filling Machine (5L-30L)

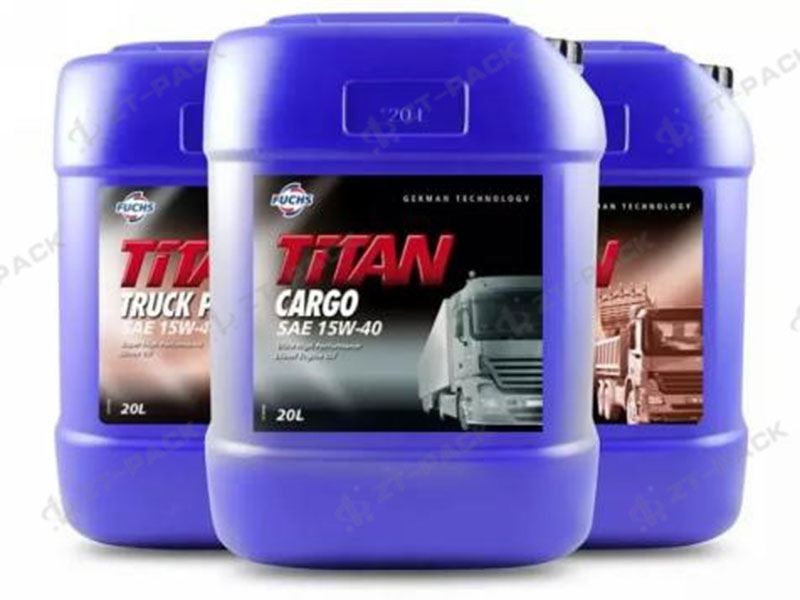

Suitable for Filling: lubricant oil / car oil / motor oil / coolant liquid / engine oil /brake oil / edible cooking oil / agrochemical / fertilizer / pesticide / chemical.

Filling Range: 5L -30L

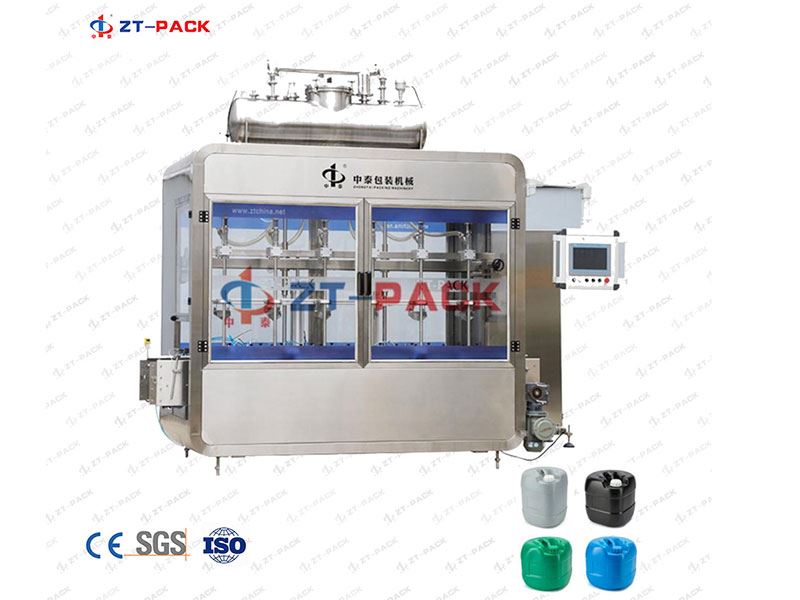

The weighing filling machine is used for filling liquid in a range of 5 to 30kg. It features a weight feedback system under each fill head to ensure the filling accuracy.

Inquiry
Features
  • The weighing filling machine is made of 304 stainless steel.

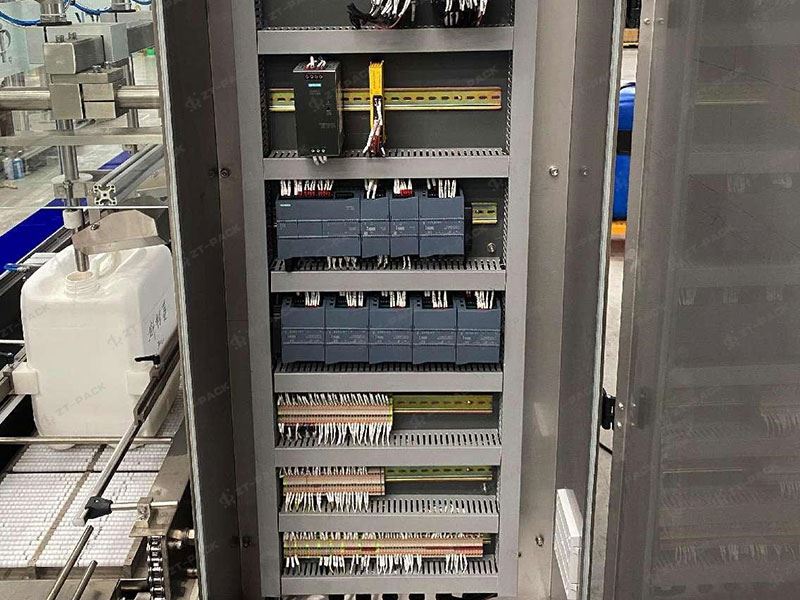

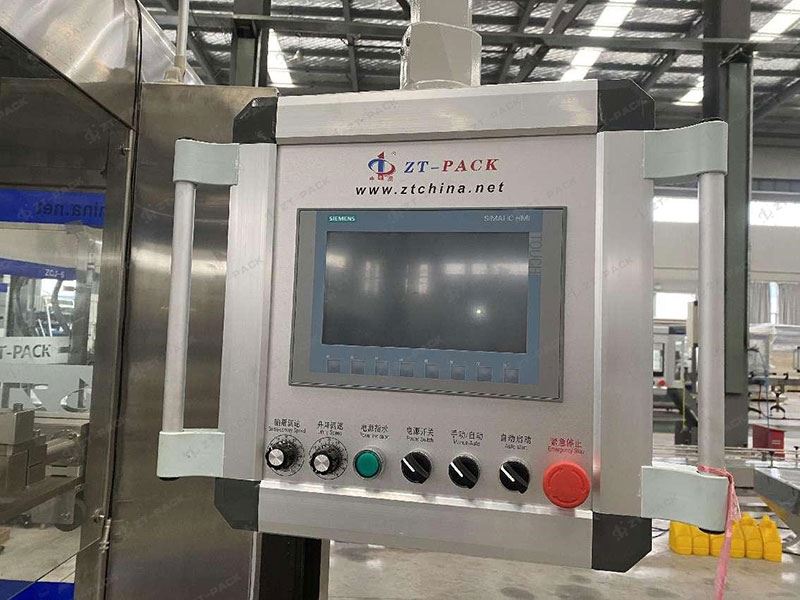

  • The machine uses a PLC with touchscreen as its control system.
  • The diving nozzle is designed to prevent bubble formation.
  • Each fill head has a weight feedback system underneath to ensure the filling precision.
  • The machine is easy to take apart and clean for routine maintenance.
  • An alarm will sound in the event of machine failure.
  • Flexible operation: suitable for filling bottles in a range of 5 to 30kg in capacity.
Specifications
Model ZCJ-4 ZCJ-6
Dimension 2535*1410*2085mm 3000×1700×2300mm
Filling head 4 6
Capacity（5L） 400B/H 550 B/H
Capacity（20L） 220B/H 350 B/H
Power 1.5KW 2KW

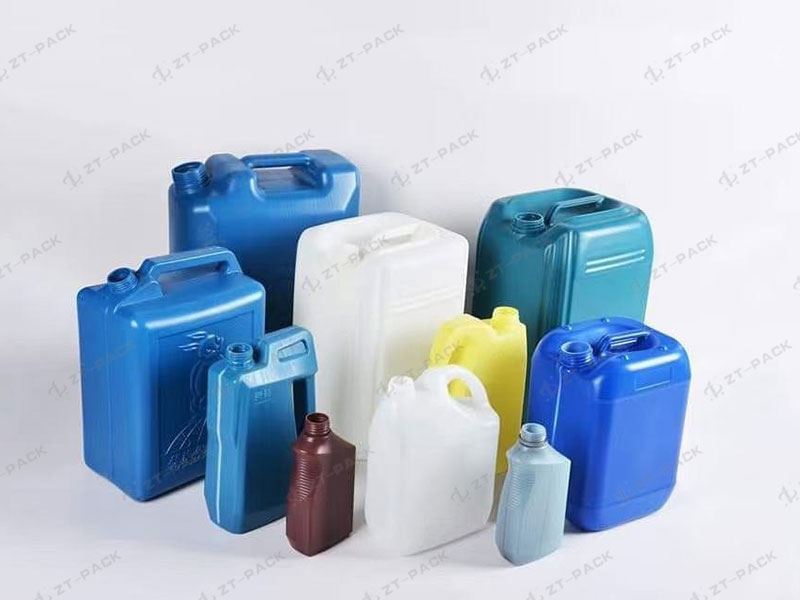

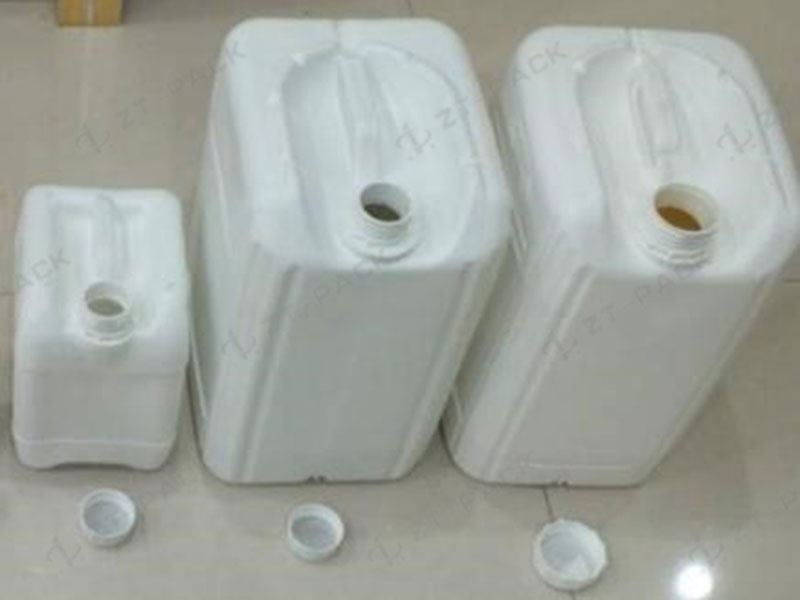

Suitable bottle Length:160-360mm width:100-300mm height:250-500mm
Filling System Load Cell Net Weight Filling System
Barrel neck diameter ≥Φ40mm
Filling error ≦±0.5%F.S
Filling range 5kg-30kg（Liters）
Air pressure 0.6Mpa-0.8Mpa
Power supply 220V, 50HZ 220V, 50HZ
Suitable for Filling
