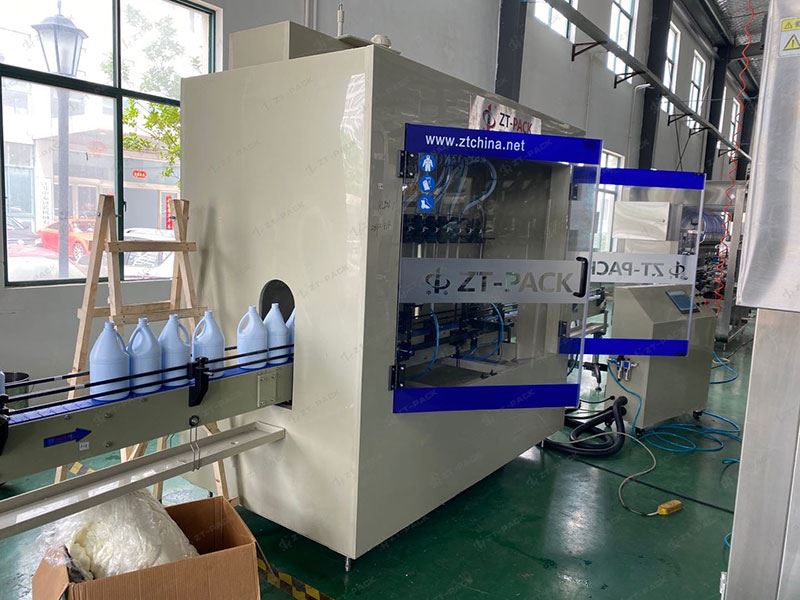

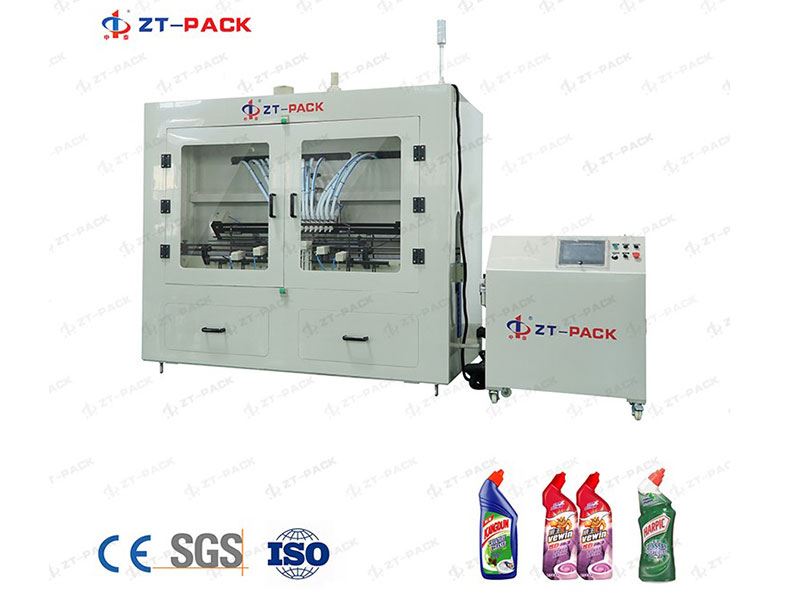

Harpic Toilet Cleaner Filling Machine(100ml-1000ml)

Suitable for Filling: bleach / clorox / toilet cleaner / flash / acid / chlorine / sulfuric acid / 84 disinfectant, etc.

Filling Range: 100ml-1000ml

Automatic corrosive filler is engineered to withstand harsh liquid and environments.
Each filling machine is built from corrosive resistant plastic material custom to tolerate the corrosive environments and suited to the products they intended for chemical plants producing strong acids, bleach In both cases, even the factory air alone contributes to the accelerated degradation of the machinery.

Inquiry

Features

Anti-corrosive so can be used with strong acids and bases
Easily adjustable between models
Imported components from trusted brands for reliability and long service life
Easy to clean and low noise
Automatic bottle feeding and counting

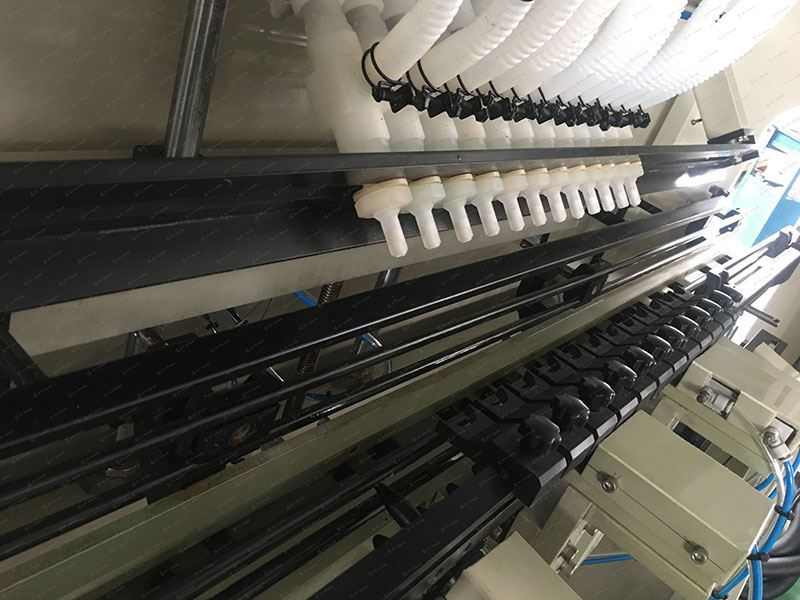

Filling heads can be finely adjusted for accurate filling
Made of nonmetallic material to prevent corrosion

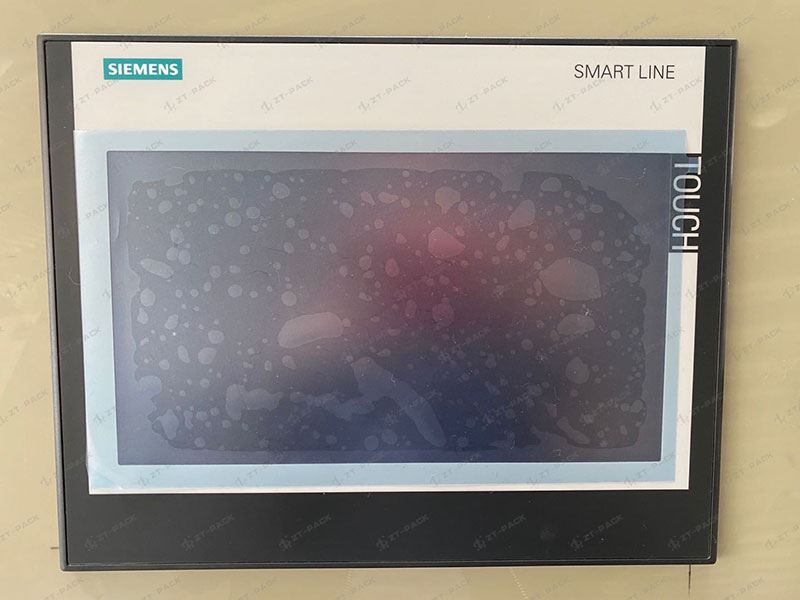

PLC and touch screen control

Specifications

Model	ZGP-6G	ZGP-8G	ZGP-10G	ZGP-12G	ZGP-16G
Dimension	2000×710×2200mm (L×W×H)		2200×710×2200mm (L×W×H)		2300×710×2200mm (L×W×H)
Filling head	6	8	10	12	16
Capacity（500mL）	1500B/H	2000 B/H	2500 B/H	3000 B/H	4000 B/H
Power	1KW	1 KW	1KW	1.5KW	1.5KW
Suitable bottle	Diameter:Φ40mm——Φ100mm Height:80mm——280mm
Filling accurate	≤100ml：+ -1.5ml 100-500ml：+ -2ml 500-1000ml：+ -3ml
Neck diameter	≤Φ10mm ( can be designed accordingly)
Filling range	100ml——1000ml （from ZT-PACK）
Filling System	Gravity Time Control
Air pressure	0.6Mpa
Power supply	220V, 50Hz / 60Hz
