|Model NO.||ZGP-G||Filling Principle||Servo Motor Piston Filling|
|Packaging Container Lifting Structure||Pneumatic Lifting||Structure||Linear|
|Filling Material||Harpic Corrosive Liquid with Angle Bottle Mouth||Filling Range||100ml-1000ml|
|Capacity||1000-3000bph||Voltage||Can Be Customized|
|Weight||850kg||Certificate||Ce, ISO, SGS|
|After Sale Service||Online Support, Free Spare Parts||Trademark||ZT-PACK|
|Transport Package||Wooden Packing Suitable for Exporting||Specification||2300mm*710mm*2200mm|
|Origin||Changzhou, China||HS Code||8422303090|

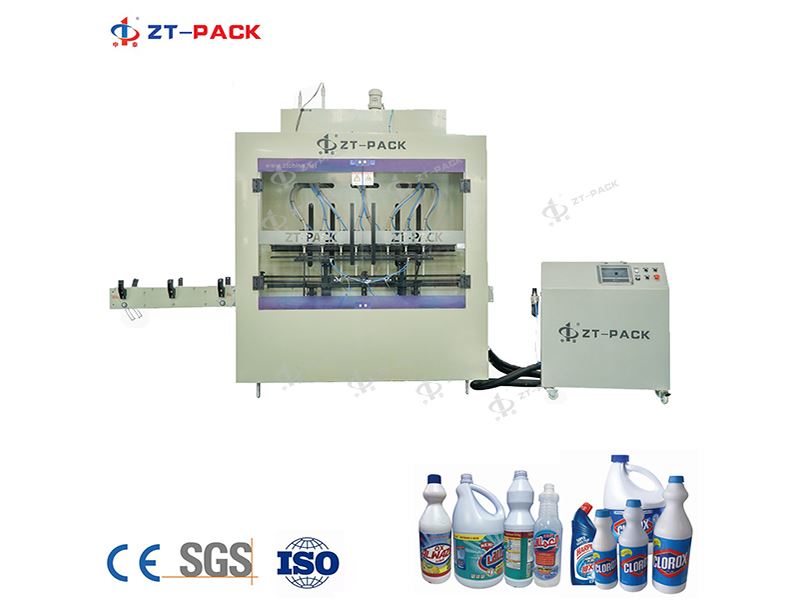

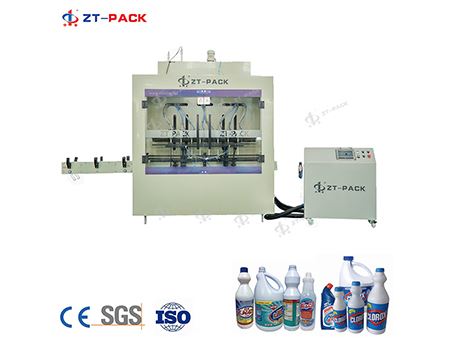

This volumetric piston filler is a type of corrosive filling machines specially designed for automatic filling of caustic liquids such as toilet cleaner into bottles. This piston filling machine is suited to fill low viscosity liquid into bottle with capacity of 500ml-5l, bottle diameter of 40-150mm and bottle height of 80-370mm. It can be changed to different bottle sizes without any tool, and can be easily cleaned by using water.
The volumetric piston filling machine uses PLC program control, photoelectric and pneumatic system. All parts from the machine touch liquid are made from non-metallic anticorrosive materials. It also designed with diving filling function to ensure accurate filling without any bubble.
This linear type volumetric piston filler is suitable to filling bleach liquid, toilet cleaner, flash cleaner, clorox cleaner and other corrosive liquids into bottles of various shapes.
|Filling range:||100ml -1000ml|
|Speed:||6 nozzles 1000-1500BPH |
8 nozzles 1300-2000BPH
10 nozzles 1500-2200BPH
12 nozzles 2000-2500BPH
16 nozzles 3000-4000BPH
