Gravity Filler | Liquid Filling Machine

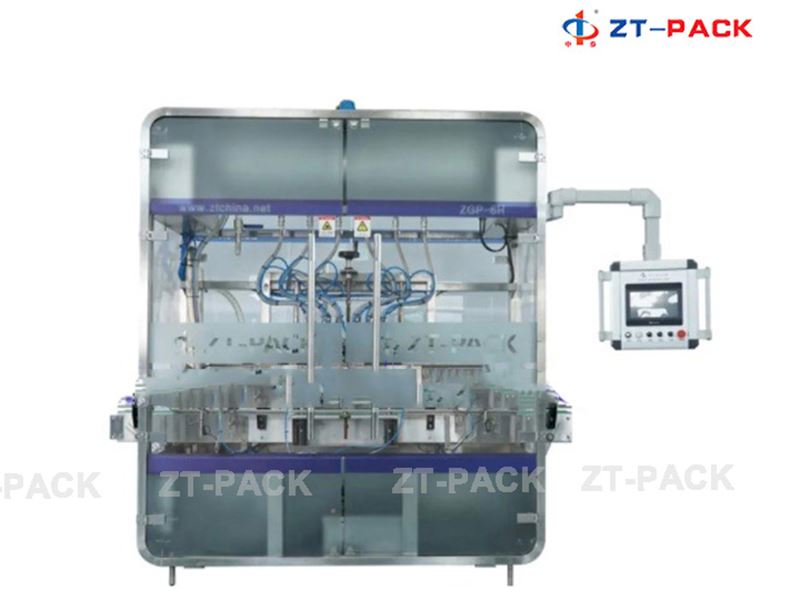

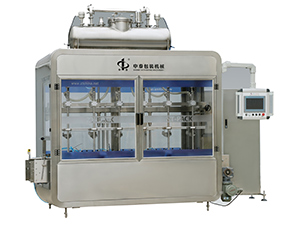

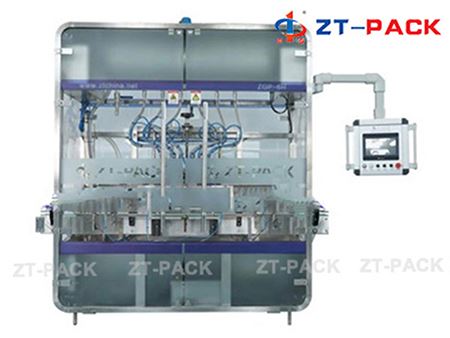

Gravity Filler, Liquid Filling Machine ZGP-H

Production Capacity: 50sets/Month
Payment Terms: L/C, T/T, Western Union
Type: Gravity Filling Machine
Automatic Grade: Automatic
Material Type: Liquid
Filling Valve Head: Multi-Head
Feed Cylinder Structure: Single-Room Feeding
Dosing Device: Gravity Time Filling

Basic Info.

Model No.	ZGP-H	Filling Principle	Time-based Filling
Packaging Container Lifting Structure	Pneumatic Lifting	Structure	Linear
Packaging	Bottle	Packaging Material	Plastic
Machine Material	SUS304	Contact Material	SUS 316
Use	for Foamy Liquid	Filling Type	Gravity Time Filling
Trademark	ZT-PACK	Transport Package	Wooden Case
Specification	244011502300mm	Origin	China
HS Code	8422303090

Introduction:

Zhongtai gravity filling machine is suitable for automatic bottling of consistent viscosity liquids, such as air freshener, glass cleaner, Dettol disinfectant liquid, etc. The gravity filler uses time-based control and servo-driven piston pump to fill liquid products. Multiple bottles with different volumes can be simultaneously filled by one machine, ensuring fast speed and high-precision filling process. The filling speed is adjustable according to your specific needs.

Features

All parts from the liquid/paste filling machine that contact liquid are made of stainless steel.
Adopting servo motor to ensure high-precision filling, and various bottle capacities can be adjusted easily, such as 200ml, 500ml, 1000ml, and can be placed in same liquid filling machine.
When there is no bottle, filling and capping will not be carried out.
The capper can be easily changed to fit different caps.

Applications

Gravity filler is an ideal choice for filling foamy products, with a capacity ranges from 100ml to 5000ml.

Parameters

Product name	Automatic Liquid Filling Machine / Gravity Filler
Productive Capacity	20-100 bottles/min
Applied Bottle	100-500ml,500-2500ml,2000-5000ml
Filling Tolerance	≥0-1%
Power	3.5KW
Power Supply	380V/220V, 50Hz/60Hz
Net Weight	950kg
Dimension	2250(L)1700(W)1950(H)mm

Electrical Parts

Item	Name	Brand
1	Filling model	Aguer
2	Inverter	Mitsubishi
3	Touch screen	Siemens
4	PLC	Siemens
5	Main motor	ABB
6	low-voltage apparatus	Schneider
7	carrier plate	Japan POM plastic material
8	Air cylinder	Airtac
