1-5L Food and Oil Packaging Machine

1-5L Food and Oil Packaging Machine
1-5L Food and Oil Packaging Machine 1-5L Food and Oil Packaging Machine

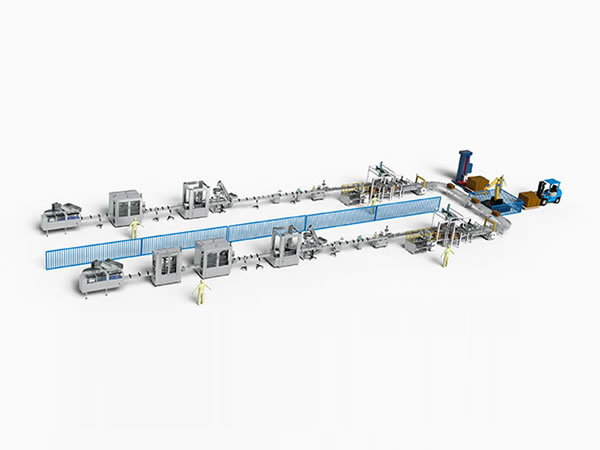

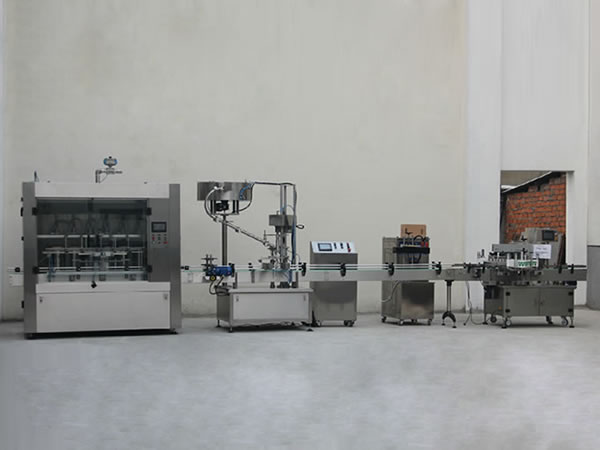

The 1.5L food and oil packaging machine combines filling and capping in one machine to bottle cooking oil, jams, chili paste, sauces, and other high viscous liquids. The food and oil packaging production line can process different bottles holding less than 5L and functions as a complete production line with conveyors, labeling, filling, sealing, and packaging into cartons.

Main performance parameters:
  • Suitable range: 1-5L
  • Production capacity: 2000-800 bottles/hour
  • Material bottled: jams, chilli paste, sauces, cooking oil and other high viscosity liquids
  • Capacity: 1000ml ≤ 2000b/h; 5000ml ≤800b/h
  • Bottle Type: round bottle diameter: Φ60-140mm
    Height: 100-340mm(L x W x H) flat
  • Diameter of bottle opening: ≥φ25mm
  • Filling range: 1000-5000ml
  • Precision: (200ml) ±1%; (200ml-1000ml)±0.5%
  • Air pressure: 0.6~0.8 MPA
  • Air consumption: 120L/minute
  • Power Source: ~380V, 50HZ
  • Power: 4.5KW
  • Production line height: 900mm±50mm
  • Bottle feeding direction: From left to right
Features:
  • Only three people (one operator, two assistants) are needed to operate this production line.
  • Oil filling machine is precise with a high qualified rate. Production capacity can be increased by up to 30%.
  • Double-sided self-adhesive labeling machine processes round and flat bottles.
  • Falling style packaging machine can process small quantities of heavier bottles that other machines can't.
  • The automatic carton opening and sealing machines are easy to operate and speed up production.
Suitable bottles:
