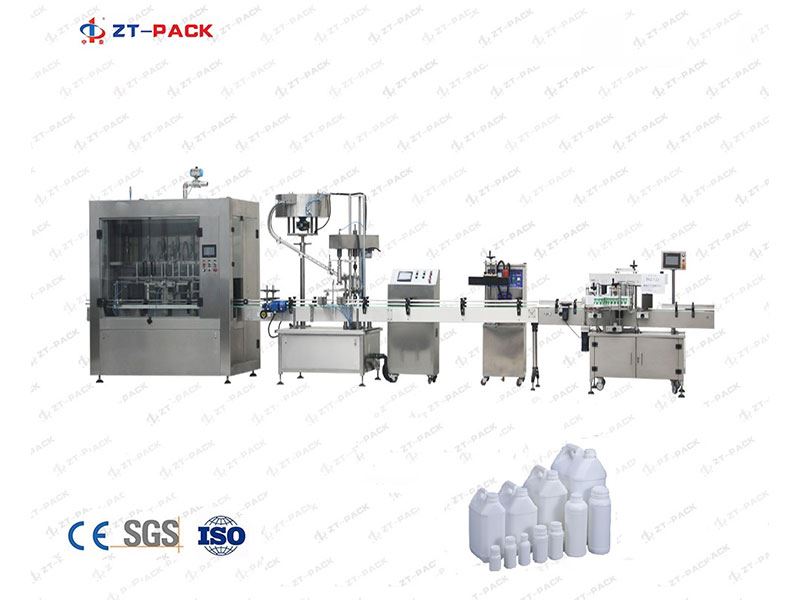

1L-5L Agrochemicals Filling Line

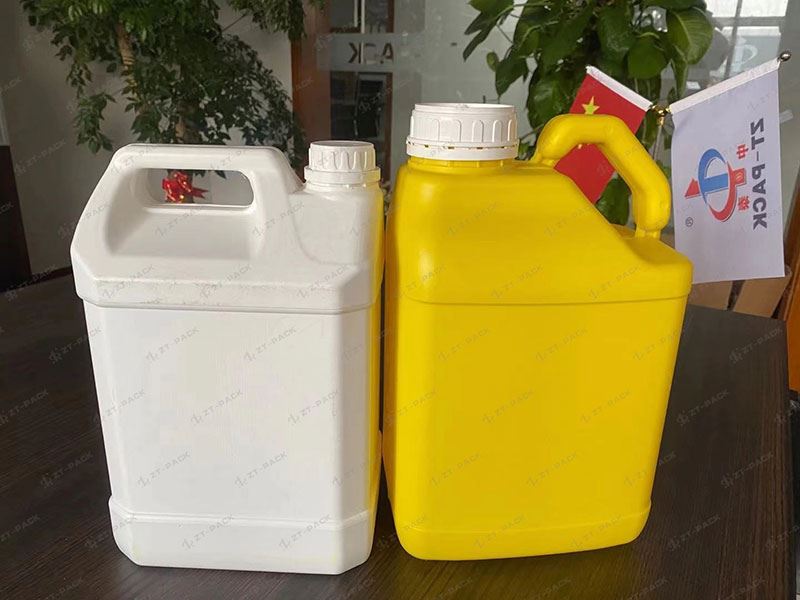

Suitable bottles
- Suitable for filling: Pesticide, fertilizer, suspending agents, liquids, emulsifiable concentrates, water-soluble fertilizers, acaricide, fungicide, herbicide, EC, SC, SL, etc.
- Filling range: 1L-5L
- Bottle shape: Round & flat bottles
- Machines included: Intelligent bottle unscrambler, intelligent filling and capping machine, online checkweighing and rejection device, aluminum foil sealing machine, inkjet printer, two-dimensional code traceability system, high-speed unpacking machine, partitioning machine, intelligent packing machine, intelligent palletizer, robotic palletizer
Specifications
| Model | ||
| Dimension | 2200(L)*1100 (W)*2200 (H) mm | 2400(L)*1100(W)*2200(H) mm |
| Filling head | 6 | 8 |
| Capacity (1L) | 1500B/H | 2200B/H |
| Capacity (5L) | 700B/H | 1000B/H |
| Power | 3kW | 4kW |
| Suitable bottle | Round bottle: Height: 100-320mm Diameter: Ø 60-140mm Flat bottle: Length: 100-200mm Width: 40-80mm Height: 150-300mm | |
| Filling range | 1000ml-5000ml | |
| Air pressure | 0.6Mpa-0.8Mpa | |
| Power supply | 380V; 50Hz/ 60Hz | |

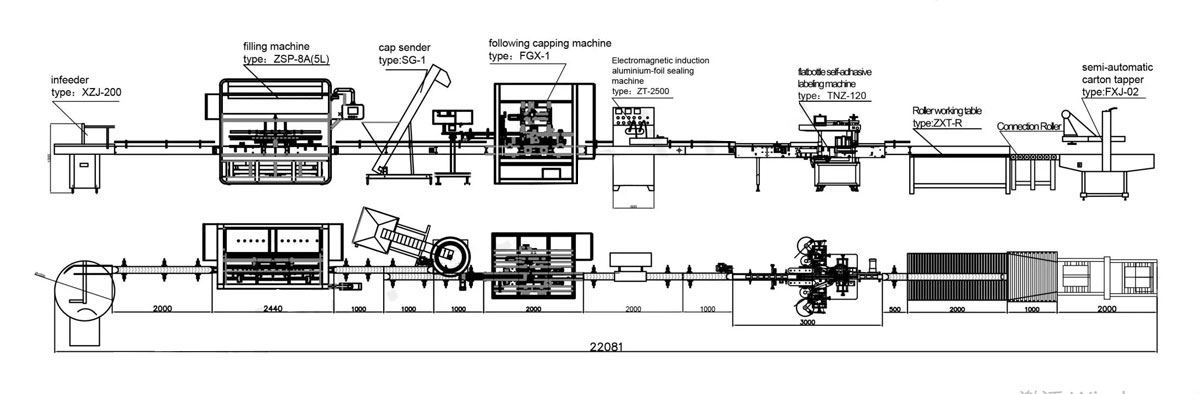

Layout drawing
